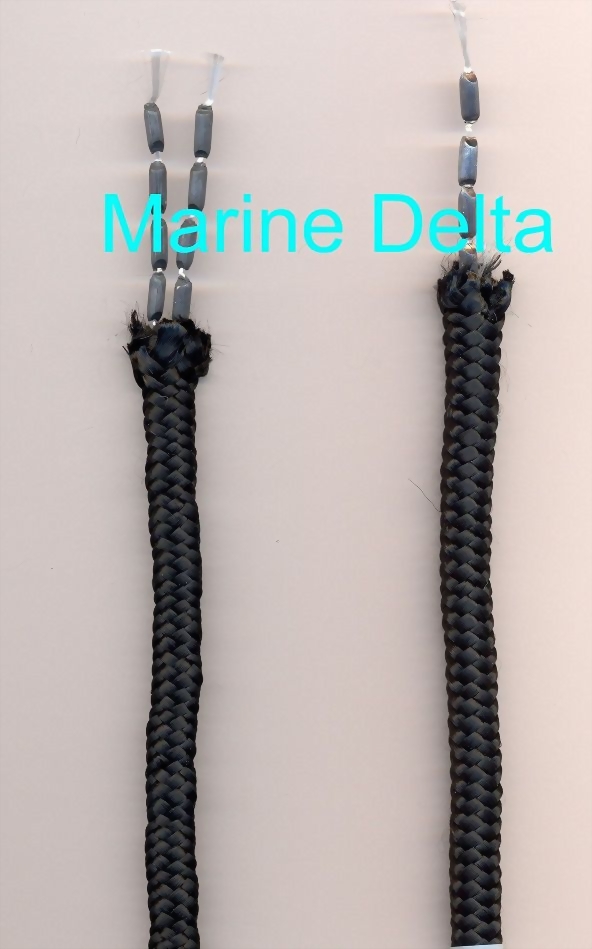

Braided Lead-Core Line for Curtain

Model : MD-LR008

Q'ty :

BRAIDED LEAD-CORE LINE SPECIFICATION SHEET

Weight/Mtr (gr)	Dia (mm)	Weight/200mtrs (kg)
10gr/mtr 12gr/mtr 15 gr/mtr 20 gr/mtr 25 gr/mtr	2.0mm 2.0mm 2.5mm 3.0mm 3.3mm	2.0kg 2.4 kg 3.0 kg 4.0 kg 5.0 kg
30 gr/mtr 40 gr/mtr 45 gr/mtr 50 gr/mtr 60 gr/mtr	3.5mm 3.8mm 4.0mm 5.0mm 5.0mm	6.0 kg 8.0 kg 9.0 kg 10.0 kg 12.0 kg
70 gr/mtr 80 gr/mtr 90 gr/mtr 100 gr/mtr 110 gr/mtr	5.0mm 5.2mm 5.3mm 5.5mm 5.5mm	14.0 kg 16.0 kg 18.0 kg 20.0 kg 22.0 kg
120 gr/mtr 150 gr/mtr 180 gr/mtr 200 gr/mtr 300 gr/mtr	6.0mm 7.0mm 8.0mm 9.0mm 10.mm	24.0 kg 30.0 kg 36.0 kg 40.0 kg 60.0 kg
400 gr/mtr 500 gr/mtr 750 gr/mtr 1,000 gr/mtr 1,500 gr/mtr	11mm 12mm 14mm 16mm 18mm	80.0 kg 100 kg 150 kg 200kg 300kg
