• Nylon Twisted Rope

Model : MD-RP008

Q'ty :

Add To Inquiry

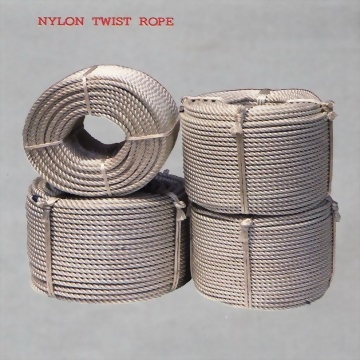

NYLON TWIST ROPE


DIA(mm) DIA (INCH) CIR(INCH) WEIGHT (200M) kgs B/S:(KGS)
3 1/8 3/8 1.2 220
4 5/32 1/2 2.1 380
5 3/16 5/8 3.2 580
6 1/4 3/4 4.5 820
7 9/32 7/8 6.0 1,080
8 5/16 1 7.9 1,390
9 3/8 1-1/8 10 1,740
10 13/32 1-1/4 12.4 2,100
11 7/19 1-3/8 14.8 2,580
12 15/32 1-1/2 17.8 2,950
13 1/2 1-5/8 20.9 3,400
14 9/16 1-3/4 24 3,940
16 5/8 2 31.3 5,050
18 23/32 2-1/4 39.7 6,290
19 3/4 2-3/8 44.4 6,940
20 13/16 2-1/2 48.9 7,650
22 7/8 2-3/4 59.2 9,100
24 15/16 3 70.4 10,700
25 1 3-1/8 76.5 11,600
26 1-1/32 3-1/4 82.6 12,500
28 1-1/8 3-1/2 95.5 14,300
30 1-3/16 3-3/4 109 16,300
32 1-1/4 4 126 18,300
34 1-11/32 4-1/4 141 20,500
36 1-7/16 4-1/2 158 22,800
38 1-1/2 4-3/4 176 25,300
40 1-19/32 5 196 27,800
42 1-21/32 5-1/4 216 30,400
44 1-3/4 5-1/2 236 33,200
45 1-25/32 5-5/8 246 34,600
50 2 6-1/4 304 42,100
